Heidelberg Suprasetter CTP System
Heidelberg
Images approved files onto offset printing plates.
Equipment
Equipment Behind the Production Workflow
The book specification determines which production resources support the route.
The Book Specification Comes First
- Format
- Page Count
- Paper
- Color
- Quantity Project print quantity
- Binding
- Finishing
Prepress & Proofing Equipment
Prepress & Proofing
FUJIFILM / Fuji Xerox Iridesse Production Press
FUJIFILM / Fuji Xerox · Iridesse
Supports digital contract proofing and digital production printing.
Epson SureColor P8080 Proofing Printer
Epson · SureColor P8080
Produces wide-format inkjet proofs.
Printing Equipment
Sheetfed Offset

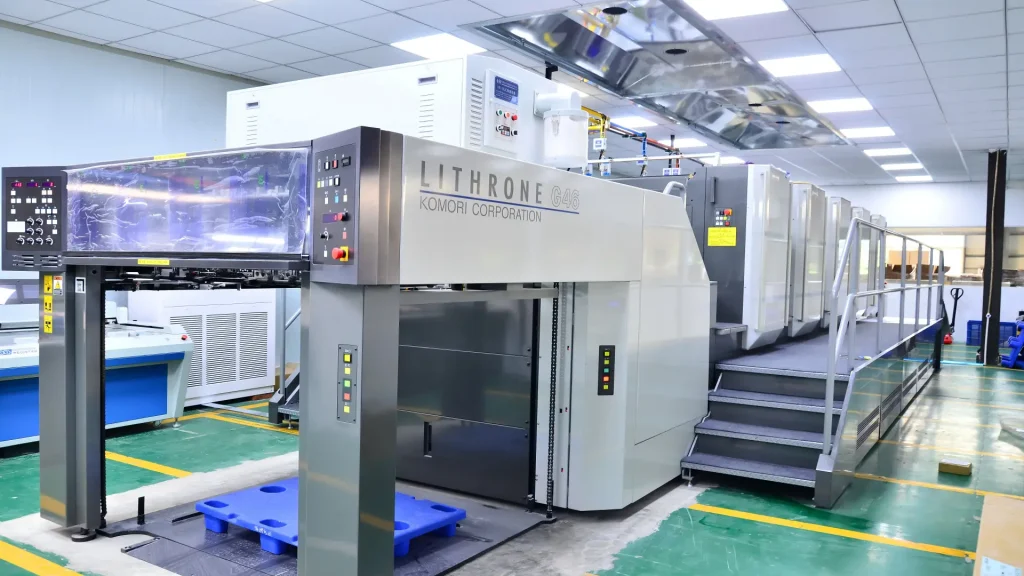

Komori Lithrone G46
Komori · Lithrone G46
Provides sheetfed offset printing.

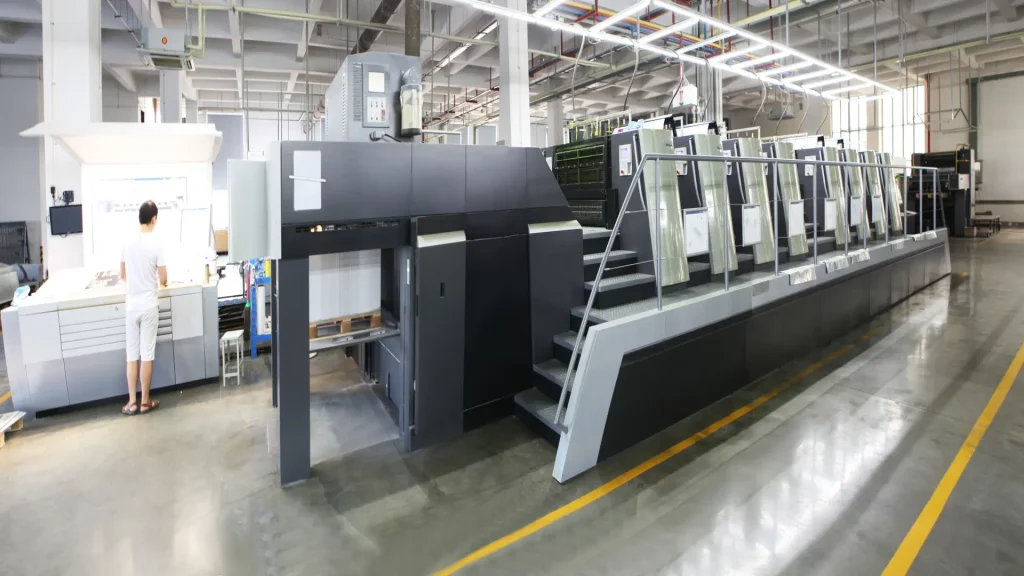

Heidelberg Speedmaster XL106-8-P
Heidelberg · XL106-8-P
8-color perfecting configuration
Provides sheetfed offset printing with the configuration stated in the source list.
Additional sheetfed presses
Heidelberg Speedmaster XL105-4
Heidelberg · XL105-4
4-color configuration
Provides sheetfed offset printing for work routed to this press format.
ROLAND 704 + 710 Evolution Elite Presses
ROLAND · R-704-3B / R-710-3B
Provides sheetfed offset printing across the listed ROLAND press group.
Supporting sheetfed production resources
Heidelberg Speedmaster CD102-5
Heidelberg · CD102-5
Provides sheetfed offset printing for work routed to this press format.
5-color configuration
Heidelberg Speedmaster CD102-4
Heidelberg · CD102-4
Provides sheetfed offset printing for work routed to this press format.
4-color configuration
Heidelberg Speedmaster XL75-4
Heidelberg · XL75-4
Provides sheetfed offset printing for work routed to this press format.
4-color configuration
Web Printing
Commercial web offset
Mitsubishi 787L-BT2-800 Commercial Web Presses
Mitsubishi · 787L-BT2-800
Web printing production context
Supporting web printing resources
Mitsubishi 787L-BT2-800 Commercial Web Presses
Mitsubishi · 787L-BT2-800
Provides commercial web-offset printing.
Binding & Finishing Equipment
Folding & Gathering

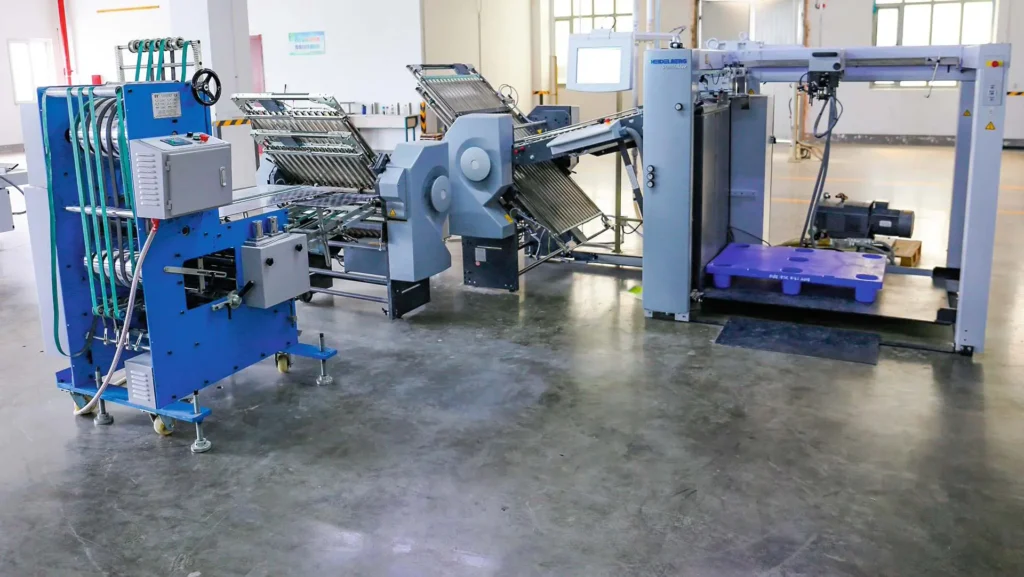

Stahl / Heidelberg BH82 Folder
Stahl / Heidelberg · BH82
All-buckle configuration
Folds printed sheets into signatures for downstream gathering and binding.
Additional folding and gathering resources
Stahl / Heidelberg CH78 Folder
Stahl / Heidelberg · CH78
Folds printed sheets into signatures for downstream gathering and binding.
9-Station Collator
9-station configuration
Gathers signatures or sections in sequence before binding.
Supporting folding and gathering resources
Stahl / Heidelberg CH66 Folder
Stahl / Heidelberg · CH66
Folds printed sheets into signatures for downstream gathering and binding.
Hao Xin HXCP Folder
Hao Xin · HXCP
Folds printed sheets into signatures for downstream gathering and binding.
Sewing & Binding
Müller Martini 16-Station Perfect-Binding Line
Müller Martini · 16-station configuration
Gathers and binds book blocks routed to perfect binding.
Additional sewing and stitching resources
Müller Martini Automatic Section-Sewing Machine
Müller Martini
Sews folded signatures into a thread-sewn book block.
Aster Automatic Section-Sewing Machine
Aster
Sews folded signatures into a thread-sewn book block.
Müller Martini 6-Station Saddle-Stitching Line
Müller Martini · 6-station configuration
Gathers, stitches and finishes publications routed to saddle stitching.
Supporting wire-binding resources
Single-Loop Wire-Binding Machine
Applies single-loop wire binding.
Double-Loop Wire-Binding Machine
Applies double-loop wire binding.
Hardcover Production
Müller Martini Diamant MC Case-Binding Line
Müller Martini · Diamant MC
Supports case binding for hardcover book construction.
8-Knife / 7-Zone Board Cutter
8-knife / 7-zone configuration
Cuts board used in case-making and related book construction.
Hao You Fu Automatic Case Maker
Hao You Fu
Produces cases used in case-bound book construction.
Finishing
Book-Edge Spraying Machine
Applies color or finish to book edges where specified.
Supporting finishing resources
Polar Paper Cutters
Polar
Cuts printed or bound materials to the required production dimensions.
GMB GMB-SWAFM-1050G Automatic Laminator
GMB · GMB-SWAFM-1050G
Applies lamination as a specified surface-finishing step.
Semi-Automatic Foil-Stamping Machine
Applies foil stamping to specified printed components.
Automatic Case Foil-Stamping Machine
Applies foil stamping to book cases.
Semi-Automatic Die-Cutting Machines
Die-cuts printed components to the approved shape.
Heidelberg Automatic Die-Cutting Machine
Heidelberg
Die-cuts printed components to the approved shape.
Packing & Production Support
Packing & Production Support

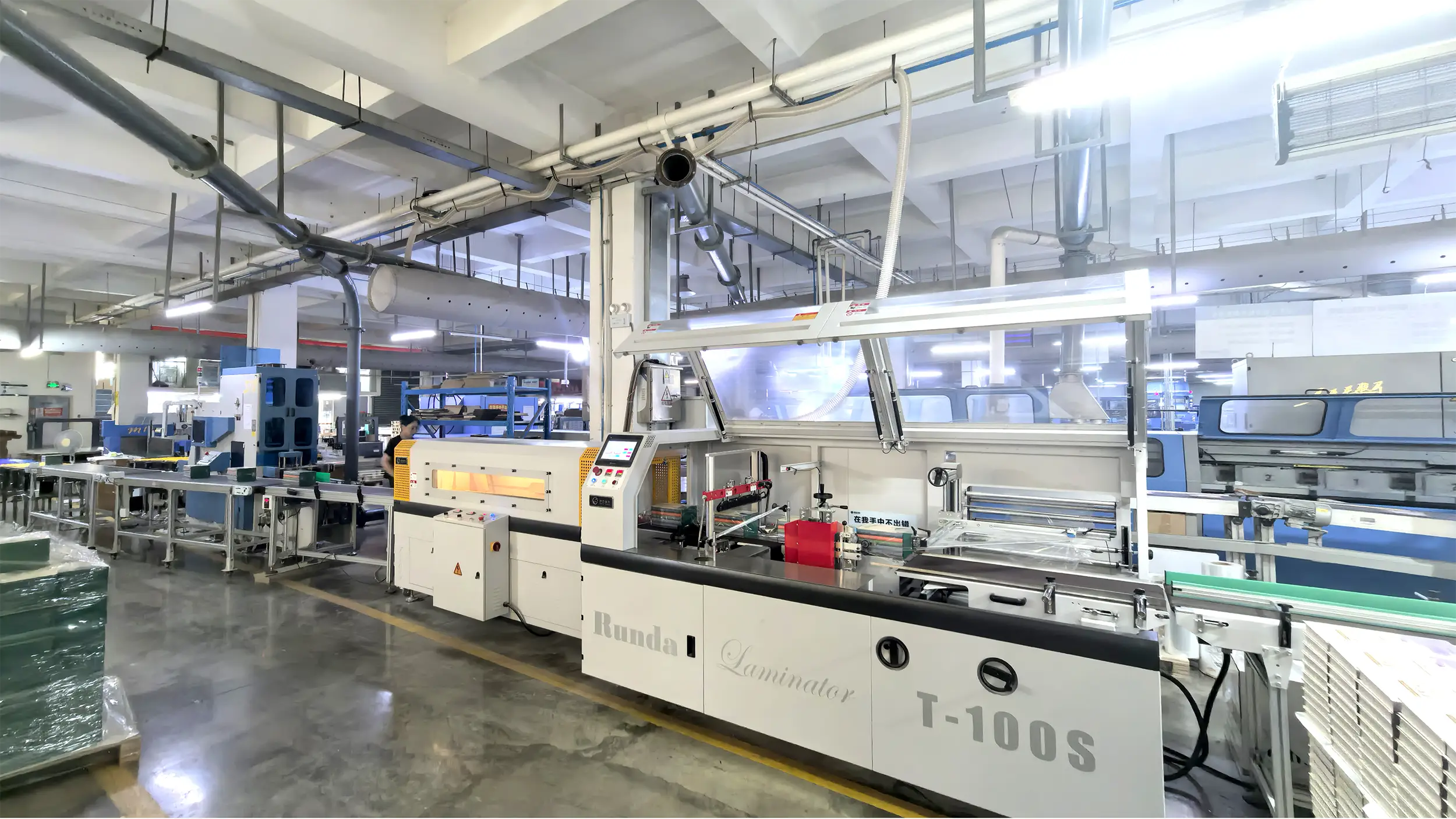

Automatic Shrink-Wrapping Line
Provides protective shrink wrapping of finished products or books before outbound handling where required.
In-Line Quality Control Note
Applicable saddle-stitching and perfect-binding lines include automatic signature and collation detection for wrong, missing and double signatures.
Explore Quality AssurancePlan the Right Production Route
Share the format, page count, paper, quantity, binding and finishing requirements for review.
